Cat5e RJ45 Connector with 0.4 mm Pure Copper Contacts: Heavy-Gauge 8P8C UTP Modular Plug Built to Outlast Thin-Stamped Plugs

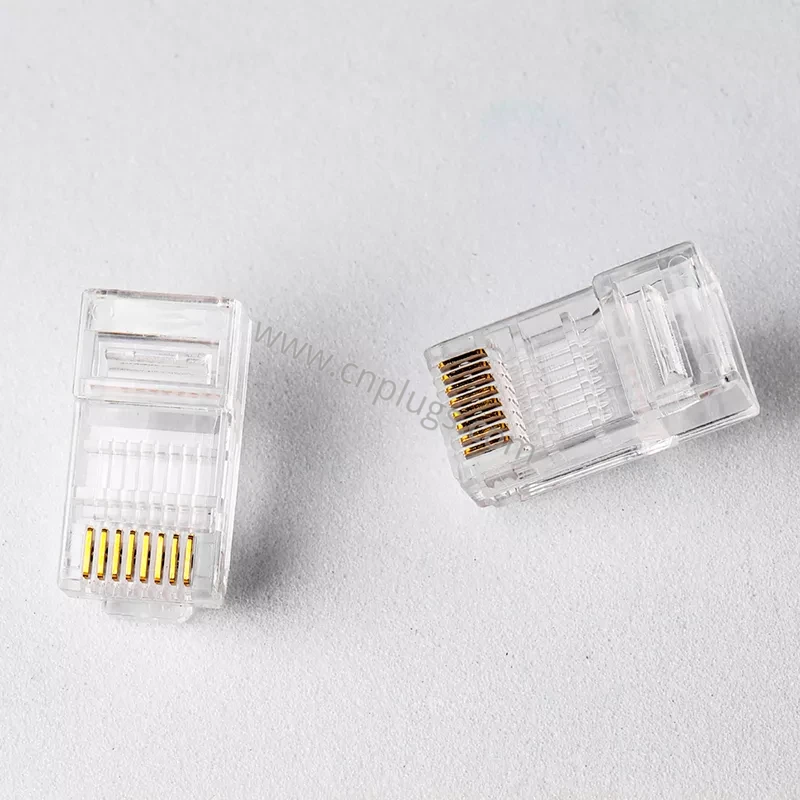

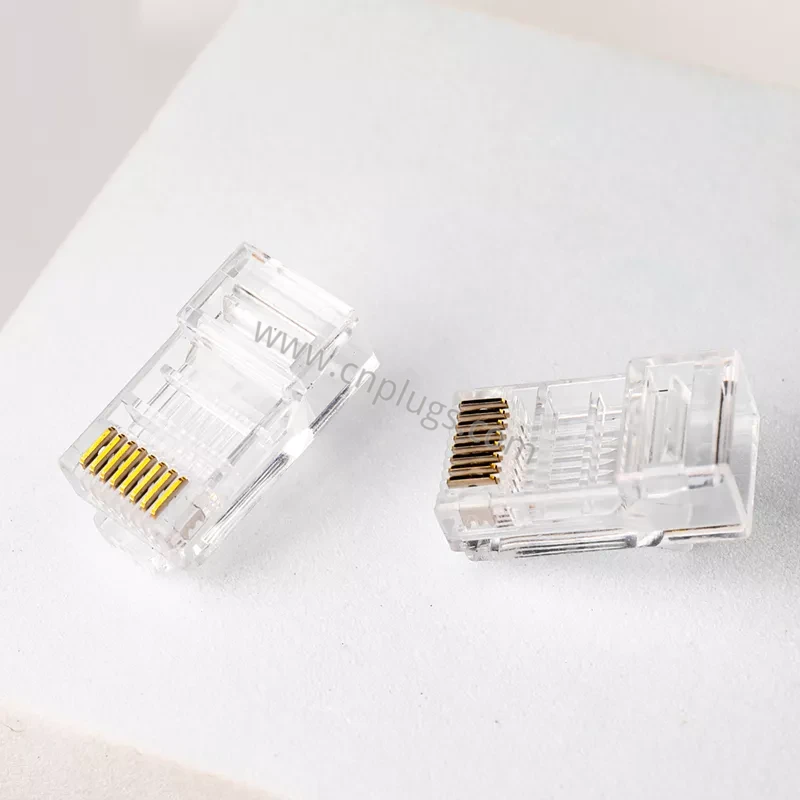

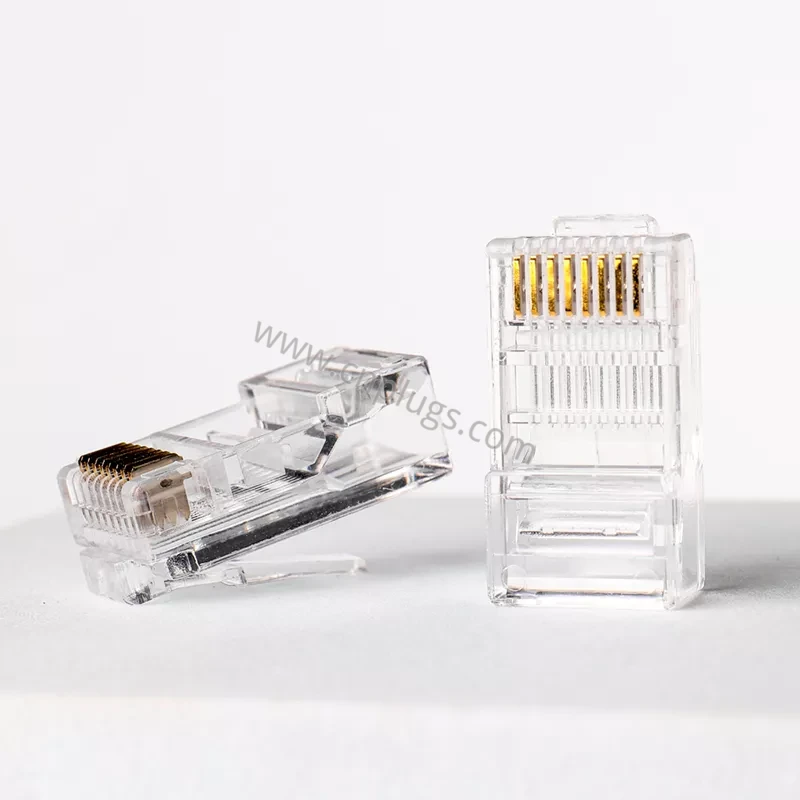

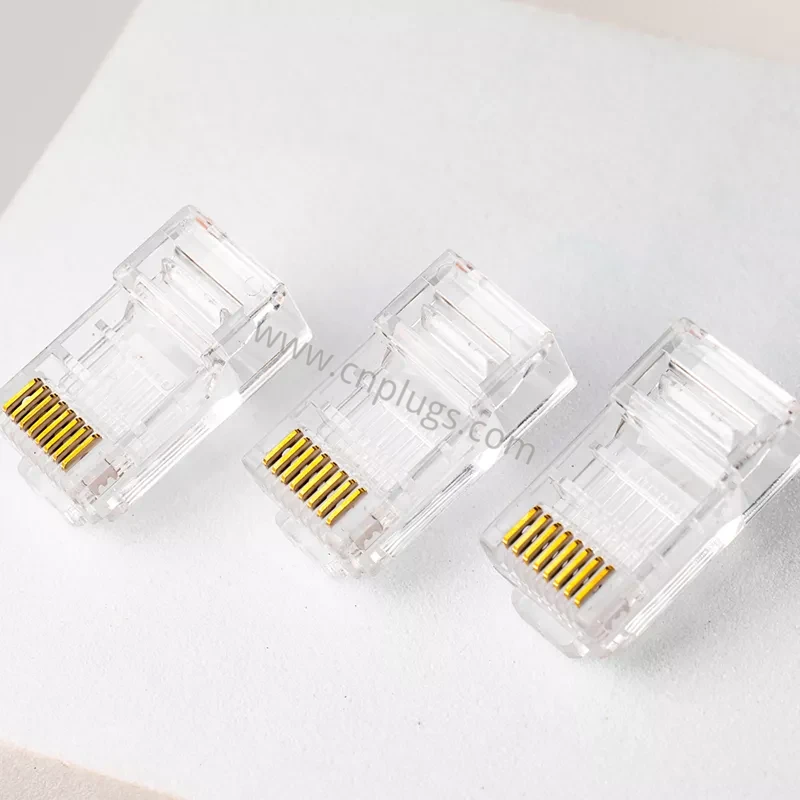

The Prounta Cat5e RJ45 connector is an unshielded 8P8C modular plug built around one specification most suppliers never publish: a 0.4 mm thick contact blade. Contact thickness is where low-cost factories quietly remove material, because a thinner stamping looks identical in a photograph and costs measurably less per thousand. It is also the difference between a plug that holds contact tension for a decade and one that develops intermittent links within months. At 0.4 mm, these blades are roughly 30% thicker than the 0.30 mm contacts specified by well-known premium brands, and you can verify it with a micrometer on the free samples we ship before you order. Combined with pure copper alloy metallurgy, 50µ” gold plating and 100% virgin polycarbonate, this is a Cat5e plug specified for installers who get paid to not come back.
Why 0.4 mm Contact Thickness Is the Spec That Matters
An RJ45 contact is a cantilever spring. When the plug is inserted, each blade deflects against the jack’s contact and must generate enough normal force to maintain a gas-tight, low-resistance interface — through vibration, thermal cycling and hundreds of insertions. Spring stiffness rises steeply with material thickness, so a thicker blade delivers substantially more contact force from the same geometry. Three practical consequences follow. First, contact reliability: higher normal force breaks through surface films and keeps resistance low and stable, which is what prevents the intermittent dropouts that plague cheap plugs. Second, crimp survivability — thin blades can deform or skew when the crimp die drives them into the conductor, causing misalignment that a visual inspection will not catch but a Fluke tester will. Third, PoE thermal performance: more cross-sectional area means lower resistive heating at the contact interface, which matters when Power over Ethernet pushes up to 90 W through the same eight contacts. If you are comparing quotations from several factories, ask each one for blade thickness in millimetres. The suppliers who cannot answer are the ones you are comparing on price alone.
Pure Copper Alloy Metallurgy and Honest Material Specification
We describe these contacts precisely: they are stamped from pure copper alloy — phosphor bronze — then nickel-plated and finished with gold. That precision is deliberate. Some suppliers advertise “100% oxygen-free copper” pins, but genuinely pure copper is too soft to pierce conductor insulation reliably and would take a permanent set instead of springing back; the industry standard for IDC blades is phosphor bronze for exactly this reason. What actually separates a quality plug from a poor one is not an unattainable purity claim but whether the base metal is a genuine copper alloy at all, rather than iron or steel with a thin copper flash. Iron-cored contacts rust, lose spring temper and fail salt-spray testing. Ours are copper alloy through the full 0.4 mm section, with 50µ” gold over a nickel barrier for corrosion resistance and 750+ mating cycles. For shielded applications requiring the same contact quality inside a metal shell, see our Cat6A and Cat8 shielded plug range.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model No. | PR-C5E-04 (Cat5e, 0.4 mm contact) |
| Category / Standard | Cat5e, ANSI/TIA-568.2-D, ISO/IEC 11801 Class D |
| Configuration | 8 Position 8 Contact (8P8C), one-piece, no load bar required |
| Shielding | UTP / unshielded |
| Contact Blade Thickness | 0.4 mm (0.0157″) |
| Contact Material | Pure copper alloy / phosphor bronze |
| Contact Plating | 50µ” gold over nickel (3µ” / 15µ” / 30µ” optional) |
| IDC Prongs | 3-prong, solid & stranded compatible |
| Housing Material | 100% virgin polycarbonate, UL 94V-0, water-clear |
| Bandwidth | 100 MHz |
| Data Rate | 1000BASE-T Gigabit Ethernet |
| Conductor Size | 24–26 AWG; insulated OD 0.90–1.05 mm |
| Cable Jacket OD | Up to 6.0 mm |
| Current Rating | 1.5 A per contact (PoE / PoE+ / PoE++ 802.3bt, 90 W) |
| Voltage Rating | 150 V AC (rms) |
| Contact Resistance | ≤ 20 mΩ |
| Insulation Resistance | ≥ 500 MΩ @ 500 V DC |
| Dielectric Strength | 1000 V AC / 1 minute, no breakdown |
| Durability | ≥ 750 mating cycles |
| Latch Flex Test | 15× 180° flex without fracture |
| Salt Spray | 48 hours, no visible corrosion |
| Operating Temperature | -40 °C to +85 °C |
| Compliance | RoHS, REACH, ISO 9001, UL-recognised material |
| Packaging | 100 pcs/bag, 50/100 pcs jar, blister card, OEM carton |
| MOQ / Lead Time | Stock from 1,000 pcs; custom logo from 10,000 pcs; 7–15 days |
Housing Quality: What to Look For
The housing tells you as much about a plug as the metal does. A quality body moulded from 100% virgin polycarbonate is water-clear or faintly blue and free of specks and cloudiness; a hazy, grey-tinged body indicates recycled resin with unpredictable mechanical properties. The latch is the second tell — ours withstands fifteen 180° flexes without fracturing, whereas brittle recycled-PC latches snap during installation and leave a plug that will not retain in the jack. Wire channels are moulded to a consistent bore so conductors seat fully against the blades rather than stopping short. Compare the same construction in our Cat5e UTP RJ45 connector with 3-prong gold contacts or step up to the Cat6 UTP modular plug with load bar.
Custom Logo, Private Label and OEM Packaging
Distributors and cabling brands can ship this plug under their own name. Options include laser marking and mold-engraved logos on the housing, custom body tints, and full retail packaging — poly bags, screw-top jars, blister cards, colour boxes and master cartons with your barcode and SKU. Drawings and 3D renderings are approved before tooling. See comparable private-label work on our custom logo Cat5e RJ45 connector and the pure copper connector free-sample program.
Frequently Asked Questions
How can I verify the 0.4 mm thickness? Measure a contact blade with a micrometer or digital calipers on the free samples we send. We publish the number precisely so it can be checked — that is the point of stating it.
Is Cat5e still worth specifying? Yes. Cat5e carries full 1000BASE-T Gigabit Ethernet over 100 m and remains the volume choice for offices, hotels, VoIP and PoE camera drops where 10G is not required. Background at Category 5 cable.
Can these plugs be used on Cat6 cable? On thinner Cat6 with conductor insulation up to 1.05 mm, yes. For thicker 23 AWG Cat6, use a plug with a larger bore such as our standard Cat6 and Cat5e plug range.
Do I need a load bar? No. This is a one-piece design; conductors insert directly and a standard 8P8C ratchet crimper completes the termination. For feed-through verification instead, see our pass-through RJ45 plugs.
Why choose 50µ” gold over 3µ”? Plating thickness governs how many insertion cycles and how much humidity the contact survives before base metal exposes and oxidises. 50µ” suits PoE, coastal and high-reinsertion environments; 3µ” to 15µ” is economical for sealed, low-cycle installations.
Do you provide free samples? Yes. Verified business buyers receive a free sample kit and pay courier cost only, credited back on the first order. Contact our engineering team for samples, drawings or bulk pricing, or browse the full RJ45 connector catalogue.
