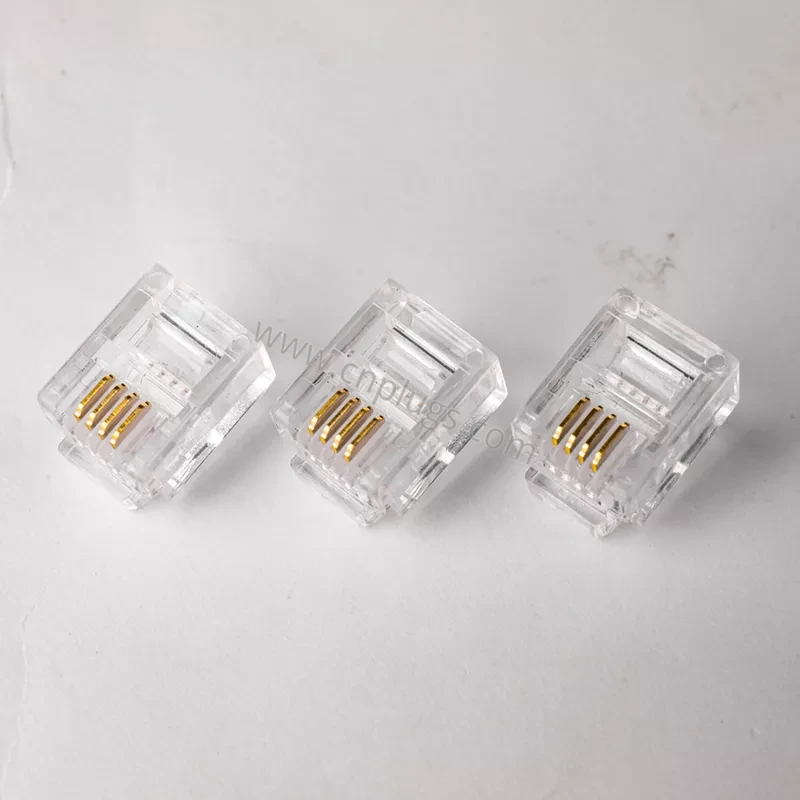

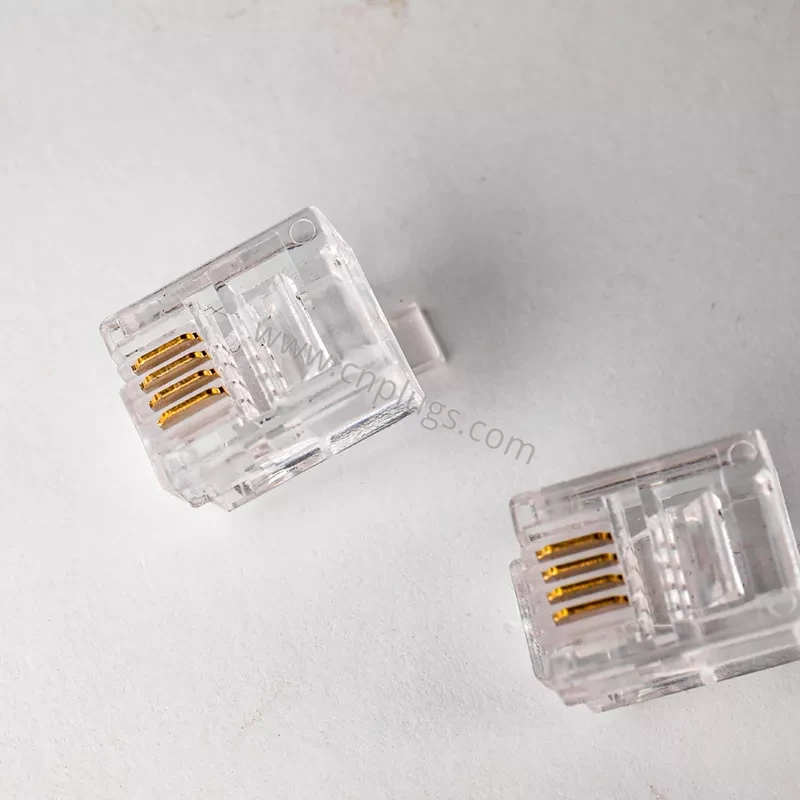

Clear RJ11 6P4C modular plug with four gold contacts
This part is a transparent 6-position, 4-contact telephone modular plug — the crystal head on a flat phone cord. Four gold blades sit in the center of a six-position nose so the plug still mates an RJ11 jack while only four conductors are loaded. It is not an 8P8C Cat5e/Cat6/Cat7 Ethernet plug and not a 4P4C handset (RJ9 / RJ10 / RJ22) plug. Cord plants, security-panel OEMs, and telecom MRO buyers use it to terminate 4-wire flat station cable for analog phones, ADSL/VDSL modem tails, fax machines, and alarm communicators.
Procurement teams searching for an RJ11 6P4C plug, a gold-plated telephone crystal head, or a 4-pin modular phone connector will specify this SKU instead of an 8P8C network plug. For Ethernet work see our RJ45 8P8C modular plugs. For handset curly-cord ends see RJ9 4P4C plugs. For shielded 10G heads see Cat7 STP RJ45 plugs.
Why 6P4C, not 6P2C or 8P8C
A six-position housing is the RJ11 face used on wall plates and modem jacks. Loading four contacts (6P4C) carries tip/ring plus a second pair for data, guest line, or alarm. 6P2C loads only the center pair for a single analog line. 6P6C (RJ12) loads all six for key-system or some PBX leads. Do not put this 4-contact plug on a Cat6 data channel: the geometry is telephone, the gold count is four, and there is no pair separator for 250 MHz.

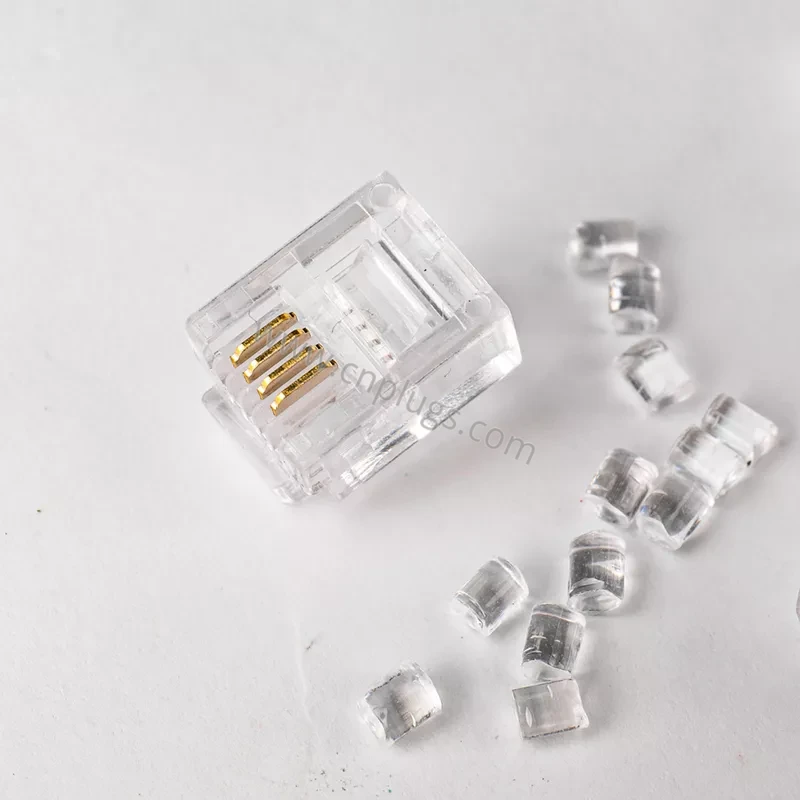

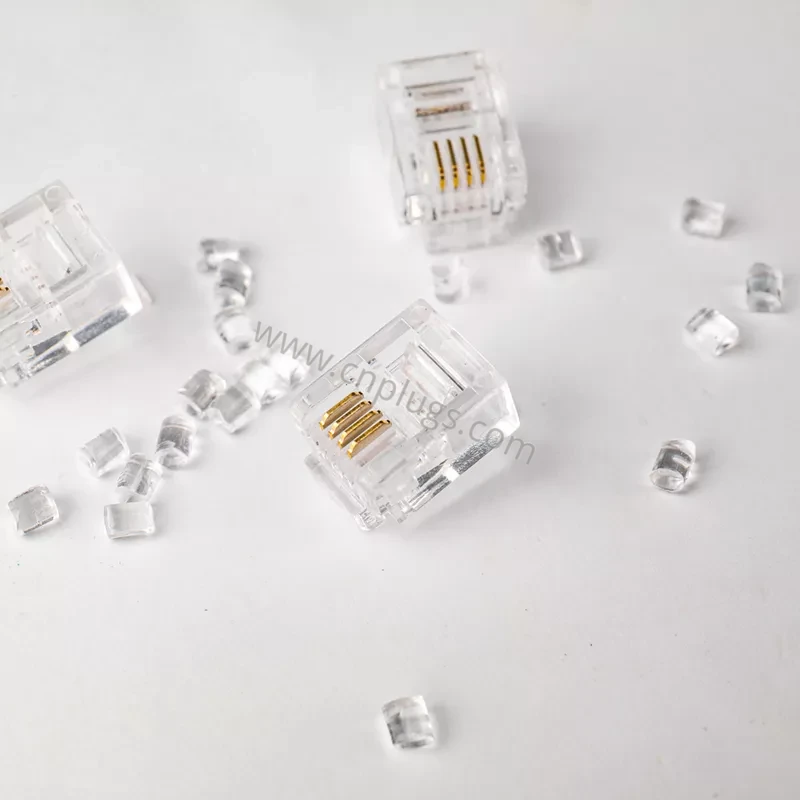

The interface belongs to the registered jack family. RJ11 in the field usually means a 6P2C or 6P4C modular connector. The clear polycarbonate body lets incoming QC see that all four conductors reached the gold blades before the tool closes. Unused outer positions on a 6P housing may ship empty or with plastic fillers — the small clear chips in the photos are typical unused-cavity or runner pieces from a 6P tool, not a second connector type.
Gold blades, flat cable, and the right die
Contacts are gold over nickel on copper alloy or phosphor bronze, usually a 2- or 3-prong IDC so both solid and stranded 26–28 AWG telephone wire holds after crimp. Use flat 4-conductor station cable (26 AWG is the usual OEM spec). A 6P modular crimp die is required; an 8P8C Ethernet tool will crush the smaller nose. Latch up, gold facing the operator, T/R on the center two positions unless the modem manual says otherwise.
This plug is unshielded and voice / low-speed data class. Typical ratings in this family: about 1.5 A / 125 VAC signal, contact resistance in the tens of milliohms, 750 mating cycles, indoor −10 °C to +60 °C. Do not specify it for PoE or 10G. Outdoor or wet drops need a different enclosure, not a thicker gold flash.
Where buyers use 6P4C crystal heads
Telephone handset-to-wall is often 4P4C at the handset and 6P4C at the wall. This SKU is the wall / modem / alarm end. Typical jobs: factory phone-cord lines, ADSL modem pigtails, fax and POS analog ports, fire-alarm communicator leads, and spare bags for building MRO. Indoor dry commercial is the default.
Technical specifications
| Item | Specification |
|---|---|
| Product name | RJ11 6P4C gold-plated modular telephone plug, clear crystal head |
| Interface | 6-position, 4-contact (6P4C) male modular plug |
| Common name | RJ11 (4-conductor loaded) |
| Housing | Transparent polycarbonate |
| Contacts | 4 gold-plated blades (center positions) |
| Shielding | Unshielded |
| Termination | IDC crimp, 6P die |
| Wire (typical) | 26–28 AWG, flat 4-conductor telephone cable |
| Duty | POTS, ADSL/VDSL modem, fax, alarm communicator |
| Not for | 8P8C Ethernet / Cat5e–Cat8; 4P4C handset unless specified |
| Electrical class (typical) | 1.5 A / 125 VAC signal; ≥ 750 mating cycles |
| OEM / ODM | Gold thickness, 6P2C / 6P6C siblings, fillers, bag qty |
Send cable type (flat or round), AWG, 6P2C / 6P4C / 6P6C, and annual volume to the engineering desk. We will return a crimp spec and a sample bag.
How to write the PO
State: RJ11 6P4C modular plug, gold plated, clear PC, 4 contacts. Do not write “RJ45” or “Cat6 crystal head.” Those are 8P8C and will not fit a 6P die or a phone jack correctly.
Frequently asked questions
Is this RJ11 or RJ45?
RJ11 6P4C. Four gold contacts. An RJ45 has eight contacts and a wider nose. They are not interchangeable.
6P4C or 4P4C?
This housing is the 6-position telephone plug with four contacts loaded. 4P4C is the smaller handset plug. If you are terminating the curly cord at the handset, order 4P4C. If you are terminating the line cord at the wall or modem, order 6P4C.
Will it work on a DSL modem?
Yes for the analog/DSL wall lead that uses an RJ11 jack. It will not replace the Ethernet RJ45 on the LAN side of the modem.
What tool do I need?
A modular crimp tool with a 6P (RJ11/RJ12) die. An 8P Ethernet-only tool is the wrong cavity.
Can you load 2 or 6 contacts in the same body?
Yes as sibling SKUs: 6P2C and 6P6C. Same clear PC, different gold count. Say which on the RFQ.
Private label?
Bag or box mark, gold thickness, and mixed cartons with telephone modular plugs are standard OEM options.
