RJ12 6P6C Telephone Modular Plug

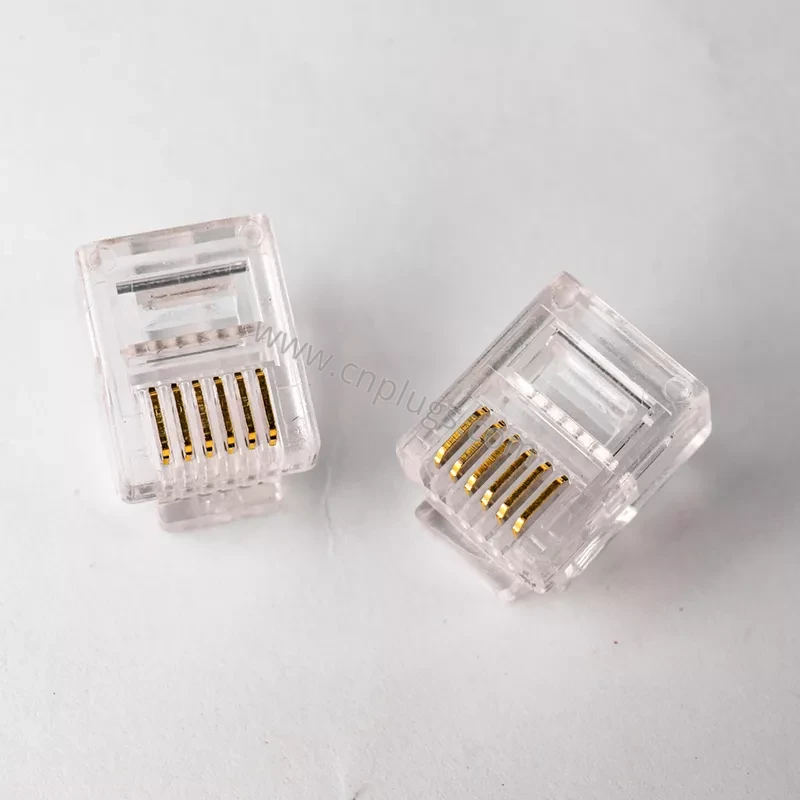

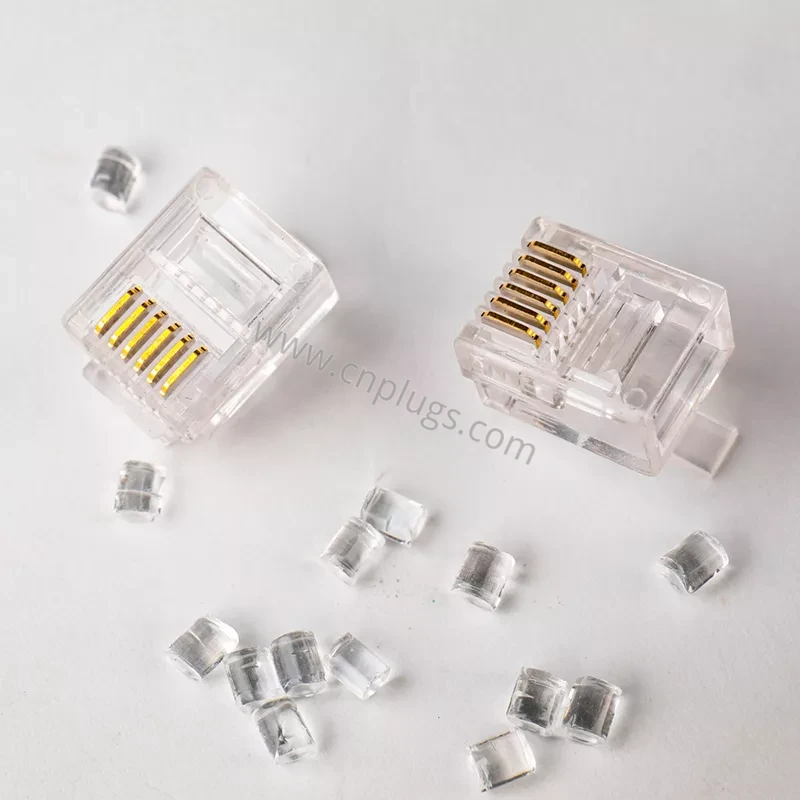

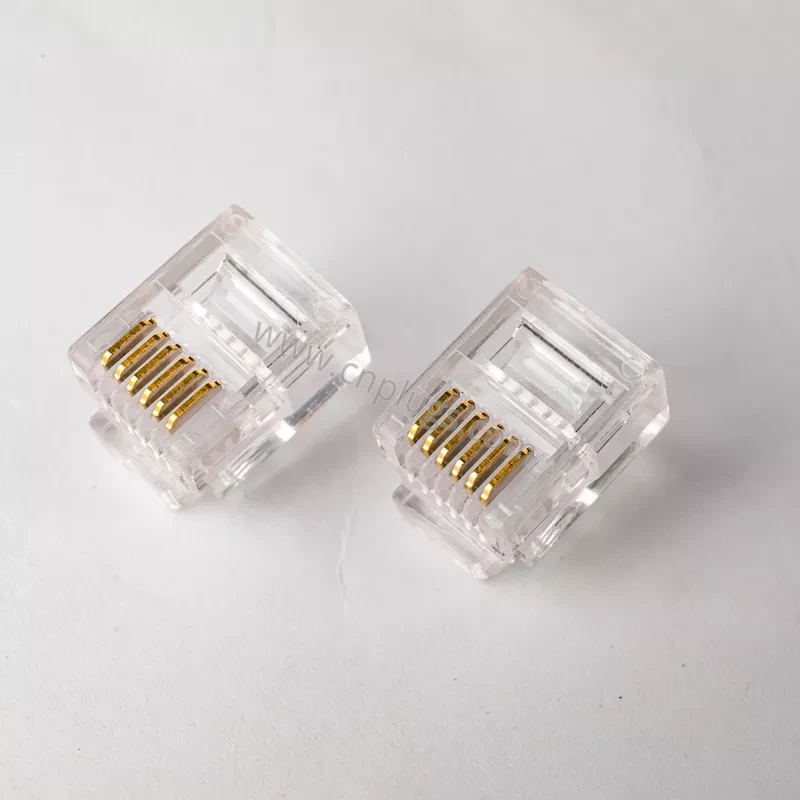

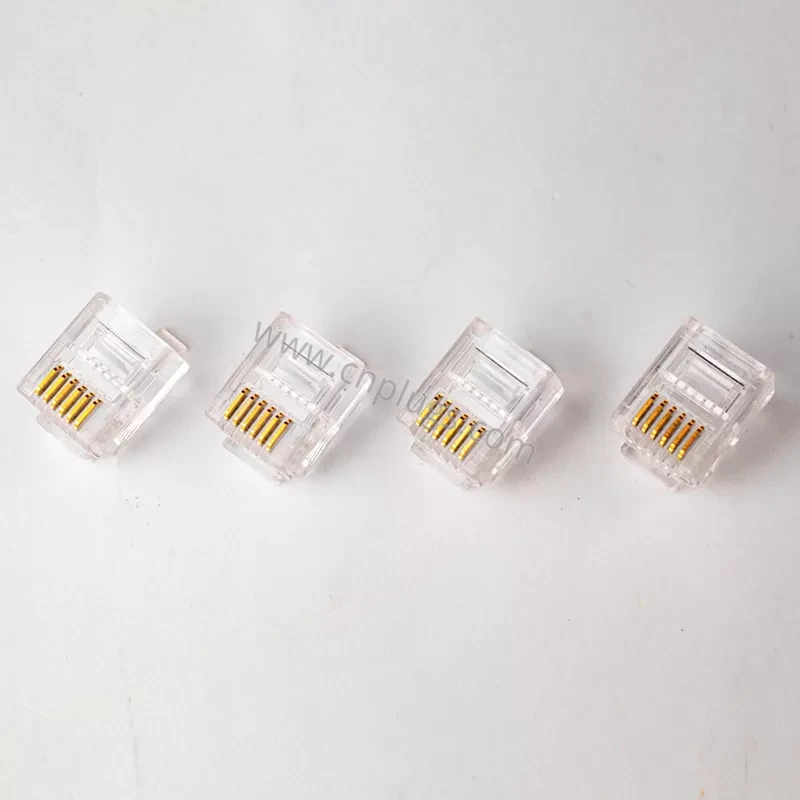

Clear RJ12 6P6C modular plug with six gold contacts

This part is a transparent 6-position, 6-contact telephone modular plug with every cavity loaded: six gold blades across the full six-position nose. It is the crystal head on flat six-conductor satin cord for key telephone systems, PBX station lines, intercom consoles and multi-line phones. Cord plants, PBX and intercom OEMs, and telecom MRO buyers use it where two or three pairs have to travel in one cord. It is not an 8P8C Cat5e/Cat6 Ethernet plug and not a 4P4C handset (RJ9 / RJ10 / RJ22) plug.

Procurement teams searching for an RJ12 plug, a 6P6C crystal head, or a six-conductor telephone connector will specify this SKU instead of a partly loaded 6P housing. For four-conductor line cords see our RJ11 6P4C plug. For single-line cords see the RJ11 6P2C plug. For data channels see our RJ45 8P8C modular plugs.

Why 6P6C: three pairs in one six-position nose

Six contacts carry three tip/ring pairs. Key systems and many PBX stations use the extra pairs for lamp signaling, feature leads and a second voice path, which is why their station cords are six-conductor. A 6P4C plug carries two pairs; a 6P2C plug carries one. The interface belongs to the registered jack family: 6P6C is formally the RJ25 code, while catalogs and buyers commonly call it RJ12. The modular connector nose is the same six-position face as RJ11, so this plug physically mates RJ11 jacks and key-system ports; the equipment wiring, not the plastic, decides whether the connection is correct.

One practical detail: because all six cavities are loaded, there are no empty positions and no fillers to specify. Buyers moving from 6P4C photos should not expect the small clear filler chips seen on partly loaded plugs.

Gold blades, flat cable, and the right die

Contacts are gold over nickel on copper alloy or phosphor bronze, as a 2- or 3-prong IDC so both solid and stranded 26–28 AWG telephone conductors hold after crimp. The typical cable is flat six-conductor satin cord, 26 AWG in most OEM specs. A 6P modular crimp die is required; an 8P8C-only Ethernet tool has the wrong cavity and will damage the nose. Crimp latch-down with the gold blades facing the operator, and follow the key system or PBX wiring chart for pair-to-position order, which varies by platform.

This plug is unshielded and voice / low-speed signal class. Typical ratings in this family: about 1.5 A / 125 VAC signal, contact resistance in the tens of milliohms, 750+ mating cycles, indoor −10 °C to +60 °C. Do not specify it for Ethernet or PoE. Outdoor or wet runs need a protected enclosure, not a thicker gold flash.

Where buyers use 6P6C crystal heads

Key-system station cords and PBX console leads are the core volume. Intercom and door-entry panels, multi-line telephone cords, alarm and POS leads that run more than two pairs, and spare bags for building MRO round out the demand. Indoor dry commercial environments are the default.

Technical specifications

Send cable type (flat or round), AWG, contact count (6P2C / 6P4C / 6P6C), and annual volume to the engineering desk. We will return a crimp spec and a sample bag.

How to write the PO

State: RJ12 6P6C modular plug, gold plated, clear PC, six contacts. Writing only “RJ11” leaves the contact count open and can arrive as 6P2C or 6P4C. Never write “RJ45” or “Cat6 crystal head” for telephone work: those are 8P8C and will not fit a 6P die or a telephone jack.

Frequently asked questions

Is RJ12 the same as RJ11?

Same six-position interface, different loading. RJ12 in catalog language means all six contacts present; RJ11 usually means two or four. This plug mates an RJ11 jack physically, and the equipment wiring decides whether six conductors are used.

RJ12 or RJ25: which name is correct?

Both describe 6P6C. RJ25 is the formal registered jack code for six positions and six conductors; RJ12 is the name the market and most catalogs use. Our category follows the market name.

Can I crimp it on 4-conductor cable?

Mechanically yes, with two channels left empty. If your cord is four-conductor, the 6P4C plug is the honest part for it; specify 6P6C when the cord carries six.

What tool do I need?

A modular crimp tool with a 6P (RJ11/RJ12) die. An 8P Ethernet-only tool is the wrong cavity.

Flat or round cable?

Flat six-conductor satin cord is the typical build. Round or special constructions are possible; send the cable spec and we return the matching crimp specification with samples.

Private label?

Bag or box marking, gold thickness, and mixed cartons with other telephone modular plugs are standard OEM options.
